TECHNICAL SPECIFICATIONS

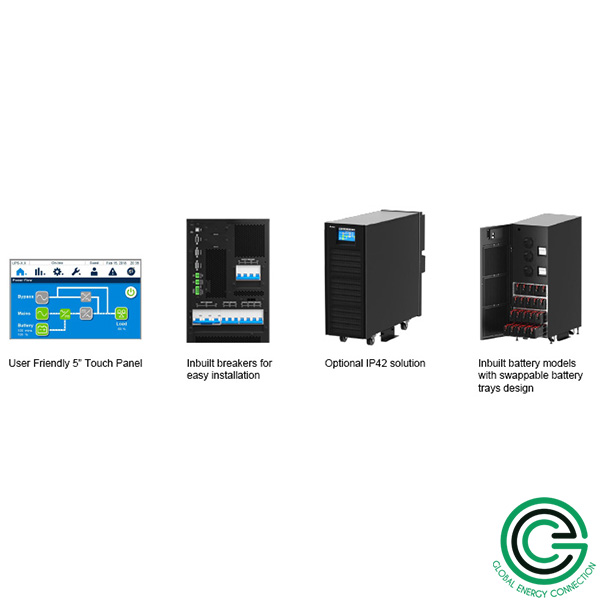

Model
HPH-20K, HPH-30K, HPH-40K,
HPH-60K, HPH-80K, HPH-100K, HPH-120K
HPH-20K-BN/B, HPH-30K-BN/B, HPH-40K-BN/B
Power Rating
[20K]: 20 kVA/kW
[30K]: 30 kVA/kW
[40K]: 40 kVA/kW
[60K]: 60 kVA/kW
[80K]: 80 kVA/kW
[100K]: 100 kVA/kW
[120K]: 120 kVA/kW
Input
Nominal Voltage
380/220Vac, 400/230Vac, 415/240Vac (3 phase, 4-wire + G)
Voltage Range
[20-40K]: 300~477 Vac (full load), 228~300 Vac (70%~100% load)
[60-120K]: 332~477 Vac (full load), 228~332 Vac (63%~100% load)
Frequency
40~70Hz
Power Factor
> 0.99 (full load)
Current Harmonic Distortion
< 3%
Output
Voltage
380/220Vac, 400/230Vac, 415/240Vac (3 phase, 4-wire + G)
Voltage Regulation
± 1 %
Voltage Harmonic Distortion
[20-40K]: < 1.5% (linear load)
[60-120K]: <2% (linear load)
Overload Capability
≤105 %: continuous
106% ~ ≤125%: 10 minutes
126% ~ ≤150%: 1 minute
>150%: 1 second
Output Power Factor
1
Frequency
50/60Hz +/- 0.05Hz
Battery
Battery Voltage
240Vdc
Type
Support SMF/VRLA/Tubular/Ni-Cd
Quantity
[20-40K]: 32-50 pcs
[60-120K]: 32-46 pcs***
Charge Current (Max.)
[20K]: 5A
Built-in
[30/40K]: 9A
[60K]: 10A
[80K]: 15A
[100/120K]: 20A
Typical Backup Time**
[20K-BN/B]: 15 min
[30K-BN/B]: 10 min
[40K-BN/B]: 9.5 min
Communication Interfaces
SMART Slot x 1, MINI Slot x 1, Parallel Port x 2, RS232 Port x 1, REPO Port x 1, Charger Detection Port x 1, Input Dry Contact x 2, Output Dry Contact x 6, USB Port x 1*
Conformance
Safety
[20-40K]: CE, RCM
[60-120K]: CE
Other Features
Parallel Redundancy
Up to 4 units
Emergency Power Off
Yes (local and remote)
Maintenance Bypass Switch
Yes
Efficiency
AC-AC
[20-40K]: Up to 96%
[60-120K]: > 96% (HPH 40-120K efficiency is tested by TÜV)
ECO Mode
Up to 99%
Environment
Operating Temperature
0 ~ 40˚C
Relative Humidity
5% ~ 95% (non-condensing)
Audible Noise
[20K]: < 55 dB
[30/40K]: < 60 dB
[60-120K]: < 65 dB
Physical
Dimensions (W x D x H)
[20-40K]: 380 x 800 x 800 mm
[60/80K]: 520 x 800 x 1175 mm
[100/120K]: 520 x 800 x 1760 mm
Weight
[20K]: 66.5 Kg
[30K]: 86.06 kg
[40K]: 86.5 Kg
[60K]: 186.5 kg
[80K]: 191 kg
[100/120K]: 312 kg
Physical (BN/B)
Dimensions (W x D x H)
[20-40K]: 490 x 830 x 1400 mm
Weight (with batt.)
[20K-B]: 365 kg
[30K/40K-B]: 385 kg
Weight (without batt.)
[20K-BN]: 131 kg
[30/40K-BN]: 162 kg
HPH-B: UPS integrated battery model has batteries inside
HPH-BN: UPS integrated battery model has no batteries inside* Applied for models HPH-60/80/100/120K
** At 70% load with internal battery strings.
*** UPS needs de-rating for battery quantity 32-36 pcs. Please contact authorized Delta personnel.All specifications are subject to change without prior notice.
